DIAL LOCK PUBLIC

The new Lehmann DIAL LOCK PUBLIC for freecode (temporary use) applications combines intuitive operation and clear signalling for secure and efficient storage security.
With it's compact design, DIAL LOCK PUBLIC blends in well with your storage design and can be installed in materials from 0.8 - 21mm thickness.

Keyless security
90 degree rotation to operate
Automatic user code scrambling for maximum security
Clear signal language and simple operation
Slim design even for the most difficult installation space situations
Simple emergency opening
Innovative operating concept
Reduction of operating and administrative costs, including no battery replacement
Right and left locks always lock in the direction of the striking plate
Emergency opening with automatic code reset
Clearly defined stop positions for the dials

Flyer DIAL LOCK PUBLIC Video

VIDEO INSTRUCTION:

LOCKING AND UNLOCKING

EMERGENCY OPENING WITH CODE RESET

DL PUBLIC LEFT : LOCKING AND UNLOCKING

DL PUBLIC LEFT : EMERGENCY OPENING WITH CODE RESET

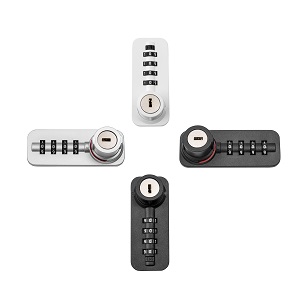

DIAL LOCK 57 / 58 / 59

Security requires no key. In order to know that valuables and personal belongings are kept safe, you need nothing but a freely selected, four-digit code.

The perfect solution for keyless-access or if a high number of possible combinations is required. 10000 different combinations possible - choose your personal code.

Whether hinged-, tambour- or sliding doors- as well as pedestals with drawers – LEHMANN provides keyless security for all applications.

Four digit dials for high security
Integrated scramble feature which automatically resets the dials during opening and closing
Code refind function on the rear of the lock
Emergency opening feature
Suitable for various panel thicknesses from 0.8mm to 21mm (steel, glass, wood…)
High flexibility as your individual code can be freely programmed
Simplified logistics due to neutral delivery
No administrative burden of key management

PDF-Catalogue Video

Dial Lock

Video assembly

Assembly Dial Lock 57 / 58 / 59

Video instruction:

Fixcode DIAL LOCK 57	Freecode DIAL LOCK 58 until 08/2017
Setting the user code	Locking and unlocking
Changing the user code	Emergency opening without code reset
Emergency opening without reset	Emergency opening with code reset
Finding unknown code

Freecode DIAL LOCK 58 FROM 08/2017

Overview of lock status

Locking and unlocking

Emergency opening with code reset

Emergency opening without code reset

Fixcode DIAL LOCK 59

Overview of lock status

Setting the user code

Changing the user code

Emergency opening with code reset

Dial lock 60 / 61

FOR HIGHEST DEMANDS

Scramble function
Emergency opening with / or wihout code reset by cylinder (Z90)
User code remains undetected
suited for areas with heavy usage
Lock can be change from r / l to l / r
Stamping configuration 16x19mm
Material thickness up to 12 mm at steel
HPL 10-13 mm with mounting adapter and spacer ring
Additional component for fixing in wood (16-21mm)

Flyer:

DIAL LOCK 60

PDF instruction:

DIAL LOCK 60 Fixcode

DIAL LOCK 61 Freecode

Video instruction

Fixcode DIAL LOCK 60:

Setting the user code

Locking and unlocking

Emergency opening without code reset

Emergency opening with code reset

Lock movement setting

YOUKU

For user guides, please visit our YOUKU channel.

Fixcode

The fixcode dial lock is ideal for users who keep the same storage over a period of time, for example personal storage units in office environments. When a new user takes possession of the storage unit, he or she will enter a personal code of their own choice. This code remains valid until changed by the user. The user can programme a new code at any time (for example to restore securiy if he is concerned the code may be compromised.

The scramble feature provides highest security in combination with user convenience: whenever the dial lock is operated, the dials are scramble to “0 0 0 0” automatically – this disguises the programmed code without any additional action by the user.

Freecode

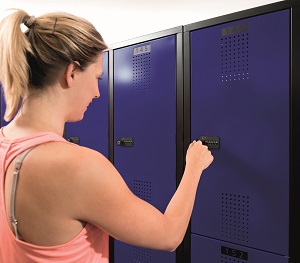

The freecode dial lock is ideal for one-time use of storage, for example guest lockers or for lockers in public areas.

The function is similar to a hotel safe. A user occupies the locker and enters a personal code of his choice to lock the storage. To retrieve his belongings, the user enters the programmed code, which allows the lock to be opened while simultaneously deleting the code. The storage unit is once again ready for the next user. The scramble feature provides highest security in combination with user convenience: whenever the dial lock is operated, the dials are scramble to “0 0 0 0” automatically – this disguises the programmed code without any additional action by the user.

DIAL LOCK 63

Lehmann Dial Lock 63 is an innovative, user-friendly lock, ideal for environments with frequently changing users. Thanks to the ability to reset the code with each use, it offers maximum flexibility while ensuring high security. Its intuitive operation makes the lock perfect for gyms, visitor areas in offices, and public facilities like libraries or universities. The robust construction makes it particularly durable and resistant to heavy use.

Flexible use through Freecode:
The code can be easily and individually set by users with each use.

Easy operation:
The operation process is particularly intuitive: 1. Set the code 2. Lock the lock 3. Scramble the code.
The lock can be quickly reopened at any time by entering the code and simply unlocking it.

Emergency opening without reset:
A central key function allows authorized staff to open the lock in an emergency without resetting the user code.

Two-way use:
The lock can be used both clockwise and counterclockwise, offering versatile application possibilities.

Ease of installation:
Thanks to various locking bolts and adapters, the lock can be easily installed on a wide variety of wood and steel furniture (punch pattern 16*19 mm, material thickness up to 12 mm, wood/HPL 12-22 mm).

Robust construction:
The locking mechanism is made of high-quality zinc die-cast, and the housing is made of glass-fiber-reinforced plastic – perfect for high-traffic areas.

Two color options:
The lock is available in two classic colors, black and white.

High security:
With 10,000 possible combinations, the lock offers a high level of security and protection against unauthorized access.

Flyer:

DIAL LOCK 63

PDF operating instructions:

DIAL LOCK 63
